QLn320 Configuration Instructions

The Zebra QLn320 has been tested & approved for wireless or Bluetooth printing in a wireless tablet environment.

To configure the QLn320 follow these instructions:

  1. Download the Zebra Setup Utility
  2. Using the Zebra Setup utility, configure the printer for wireless or Bluetooth connectivity
  3. Install the ZDesigner QLn320 (ZPL) driver onto the tablet - Make sure it is the ZPL version

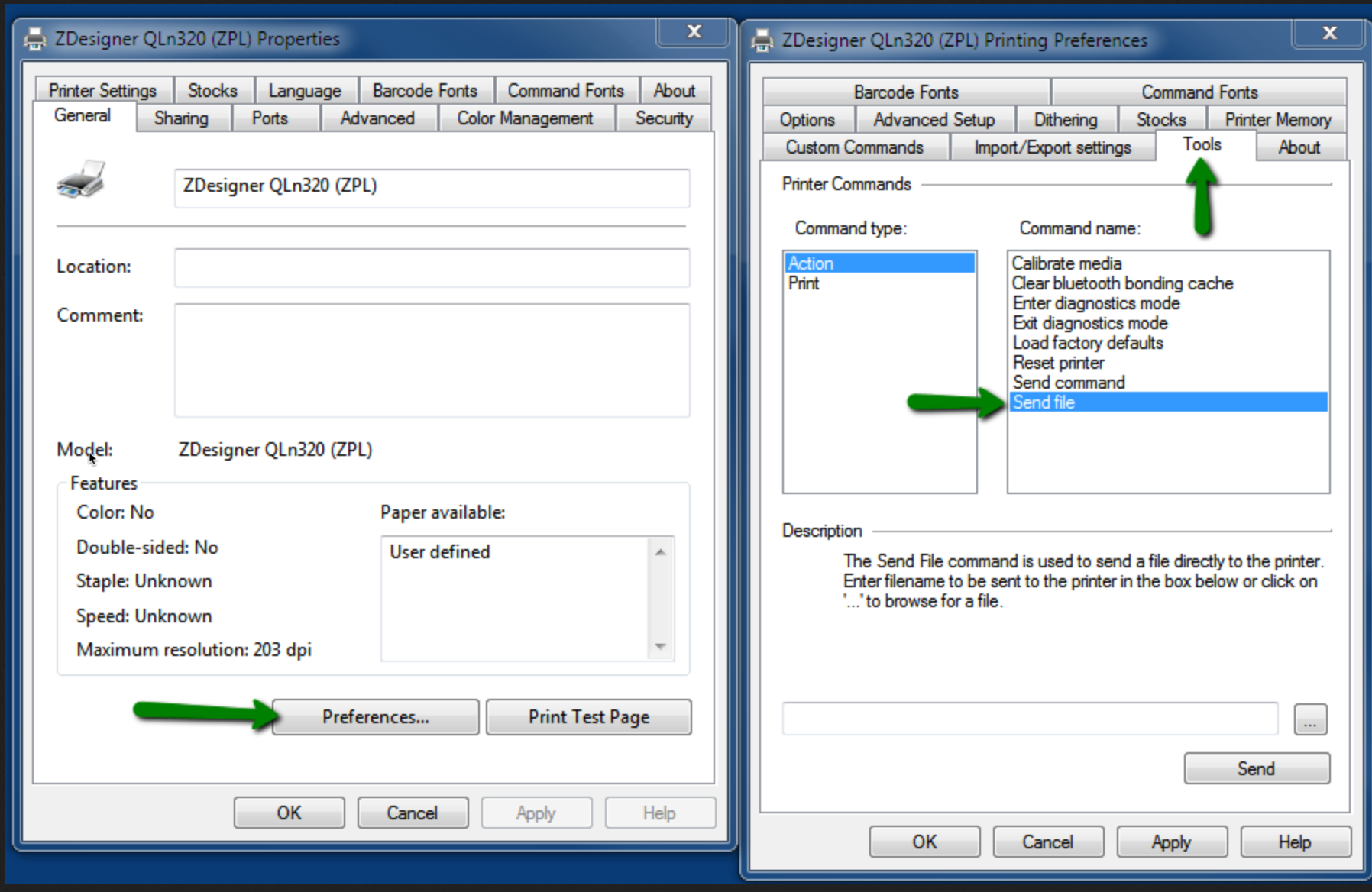

  4. Send the First_Setup.txt file to the printer - printer will beep
  5. Send the Run.bat file to the printer - printer will do nothing
  6. Reboot the printer
  7. Setup the printer as the default printer in Check-In

Files to Download:
